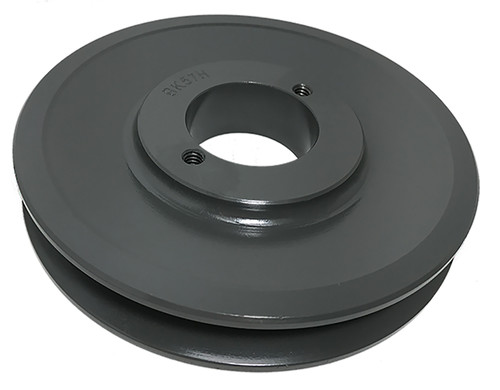

BK62H, V-Belt Pulley

BK62H

BK62H, V-Belt Pulley, Cast Iron

Learn more about BK62H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	BK62H
Type	2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	5.950
Face Width (in)	0.875
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	5.200
Pitch Dia. "B"	5.600
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	2.60
Part Number Cross Reference	BK62QT, BK62H, BK62-QT, 20179619, BK62H SHEAVE, BK62, BK62-QT, BK62H, 00754341, MBL59, BK62QT, BK62H, BK62H, MBL59, BK62H
Grooves	1
