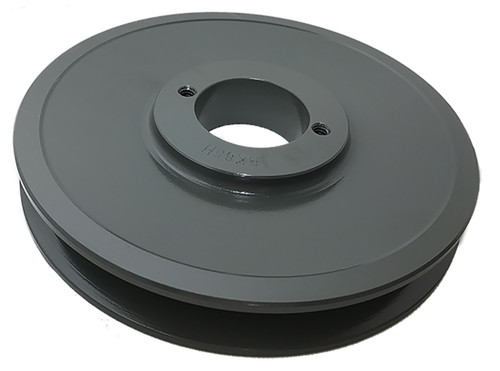

BK77H, V-Belt Pulley

BK77H

BK77H, V-Belt Pulley, Cast Iron

Learn more about BK77H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	BK77H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	7.450
Face Width (in)	0.875
Overall Length (in)	1.563
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	6.700
Pitch Dia. "B"	7.100
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	3.80
Part Number Cross Reference	BK77QT, BK77H, BK77-QT, 20179625, BK77H SHEAVE, BK77, BK77-QT, BK77H, MBL74, BK77QT, BK77H, BK77H, MBL74, BK77H
Grooves	1
