BK85x1, V-Belt Pulley

Product Details for BK85x1

Comparable to: BK85 1., BK85-1 PULLEY, 20180360, 121668, BK851, BK85-1, MB83x1

Click to Enlarge

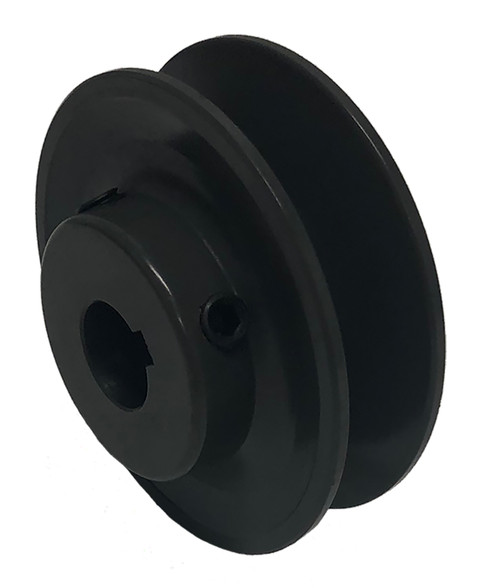

BK85x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK85x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK85x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 8.250
Face Width (in) 0.875
Overall Length (in) 1.531
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
MOQ 1
Pitch Dia. "A" 7.500
Pitch Dia. "B" 7.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.55
Part Number Cross Reference BK85 1., BK85-1 PULLEY, 20180360, 121668, BK851, BK85-1, MB83x1
Grooves 1
Set Screw Quantity 1
