F30-14M55-SK, Timing Pulley

F30-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F30-14M55-SK

F30-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

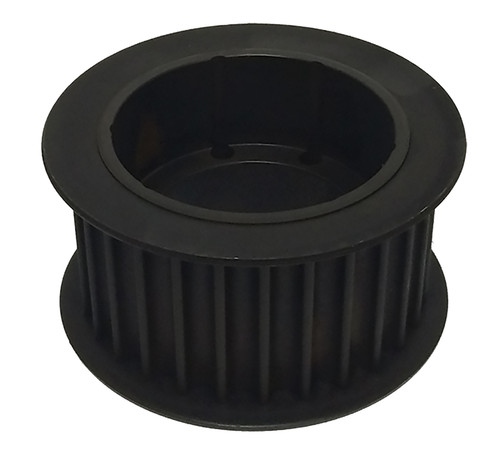

F30-14M55-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F30-14M55-SK to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F30-14M55-SK
Teeth 30
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.760
Face Width (in) 2.750
Overall Length (in) 2.750
Hub Diameter (in) 6.000
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 134.00
O.D. (mm) 130.90
A (in) 3.910
C (in) 2.440
D (in) 1.250
E (in) 0.75
F (in) 2.75
M (in) 0.75
MOQ 1
Weight (lb) 6.80
Part Number Cross Reference F30-14MGT-55-SK, P30-14M-55, F30-14M55-SK, F30-14M55-SK
