F40-8MX21-SH, Timing Pulley

F40-8MX21-SH - Ductile Iron Powerhouse® MX Pulleys

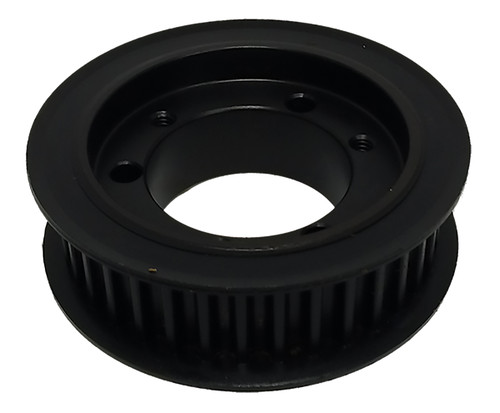

F40-8MX21-SH

F40-8MX21-SH - Ductile Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

F40-8MX21-SH, Timing Pulley, Cast Iron, Black Oxide

B&B Manufacturing carries F40-8MX21-SH to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F40-8MX21-SH
Teeth 40
Tooth Style 8MX
For Belt Width (mm) 21.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SH Bushing
Pitch Diameter (in) 4.010
Outside Diameter (in) 3.947
Flange Diameter (in) 4.331
Face Width (in) 1.250
Overall Length (in) 1.250
Hub Diameter (in) 2.300
Min. Bore (in) 0.5
Unit System Inch
Bushing SH
P.D. (mm) 102.00
O.D. (mm) 100.30
A (in) 3.240
C (in) 0.960
D (in) 0.812
F (in) 1.203
M (in) 0.391
MOQ 1
Weight (lb) 2.48
Part Number Cross Reference F8M-40S-21, F8MX40S21-SH, 40G-8M-21-SH, F8MX-40S-21 SH FIN FAN, F8MX40S21-SH, F40-8MX21-SH, 482201, F40-8MX21-SH
