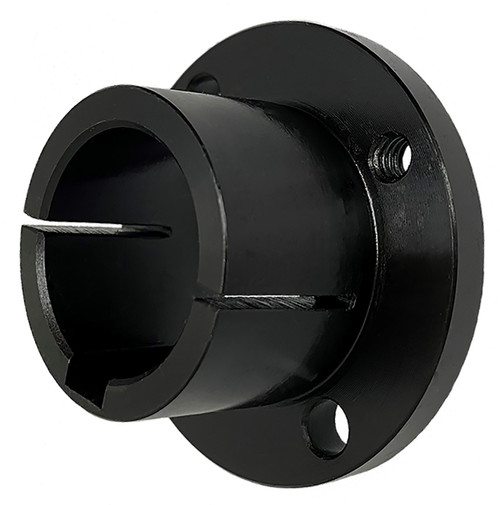

Hx20mm, Split Taper Bushing

Hx20mm

Hx20mm, Split Taper Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Hx20mm Bushings in a large variety of bore sizes from stock.

Product Number	Hx20mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	20 mm Finished Bore
Bore (mm)	20.00
Min. Bore (in)	0.375
Unit System	Metric
Bushing	H
B (in)	1.625
D (in)	2.500
D	1.375
d	0.375
E (in)	1
F (in)	0.875
H (in)	2.500
L (in)	1.25
T (in)	1.000
U (in)	0.250
V (in)	2.000
X (in)	0.875
Y (in)	0.188
Torque Capacity (lb/in)	95
Number & Screw Size	2 - (1/4 x 3/4)
MOQ	1
Weight (lb)	0.80
Part Number Cross Reference	H 20 mm, QTX20MM BUSHING, 20181507, H X 20MM-KW BUSHING, QT20MM, HX20MM, Hx20mm, 121469, Hx20mm
Cap Screw Quantity	2
