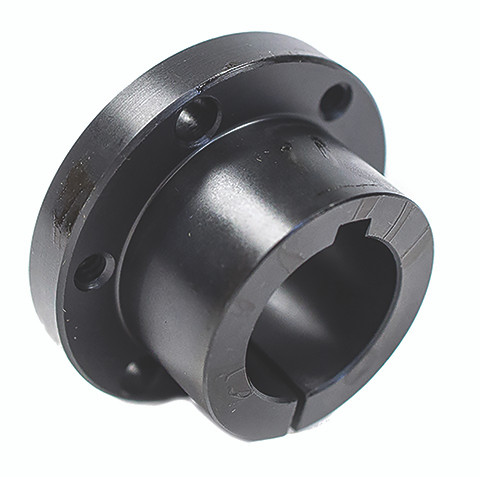

JAx1, QD Bushing

JAx1, JA.1, JA X 1, JA-1, 20181286, JA1

JAx1

JAx1, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries JAx1 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number JAx1
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Min. Bore (in) 0.5
Unit System Inch
Bushing JA
A (in) 0.313
B (in) 1.375
D (in) 2.000
E (in) 0.688
F (in) 0.588
L (in) 1
Torque Capacity (lb/in) 1,750
Bolt Circle (in) 1.660
Number & Screw Size 3 - (10-24 x 1)
MOQ 1
Weight (lb) 0.50
Part Number Cross Reference JA 1., JA.1, JA X 1, JA-1, 20181286, JA X 1kw, JA1, JA X 1, JA-1, JA X 1, JA-1, JA-1, 120340, JAx1
Cap Screw Quantity 3

Related Products

Comparable to: JA 1., JA.1, JA X 1, JA-1, 20181286, JA X 1kw, JA1, JA X 1, JA-1, JA X 1, JA-1, JA-1, 120340, JAx1

Documentation

Download Catalog
Keyway Standards and Tolerances
Bushing Installation Guide
