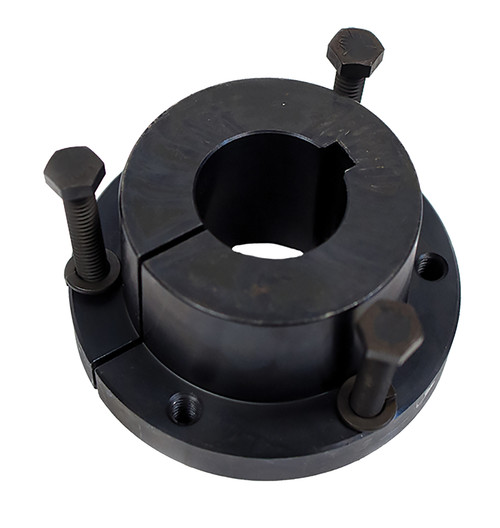

Mx2, QD Bushing

Mx2, M-2, 20181337

Mx2

Mx2, QD Bushing, Ductile Iron 65-45-12, Black Phosphate,

B&B Manufacturing carries Mx2 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number Mx2
Material Ductile Iron 65-45-12
Finish Black Phosphate
Bore Type Finished Bore
Bore (in) 2.000
Bore Description 2 Inch Finished Bore
Min. Bore (in) 2
Unit System Inch
Bushing M
A (in) 1.250
B (in) 6.500
D (in) 9.125
E (in) 5.5
F (in) 5.188
L (in) 6.75
Torque Capacity (lb/in) 125,000
Bolt Circle (in) 7.875
Number & Screw Size 4 - (3/4-10 x 6-3/4)
MOQ 1
Weight (lb) 47.80
Part Number Cross Reference M 2., M.2, M 2, M-2, 20181337, M X 2-KW BUSHING, M2, M-2, MX2, M-2, Mx2, 119900, Mx2
Cap Screw Quantity 4

Related Products

Comparable to: M 2., M.2, M 2, M-2, 20181337, M X 2-KW BUSHING, M2, M-2, MX2, M-2, Mx2, 119900, Mx2
