QD112-8M-85-F, Timing Pulley

QD112-8M-85-F - Cast Iron Powerhouse®HTD® Pulleys

QD112-8M-85-F

QD112-8M-85-F - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

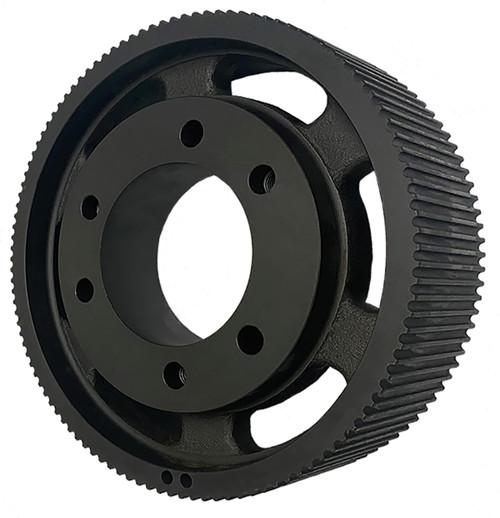

QD112-8M-85-F, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD112-8M-85-F Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD112-8M-85-F
Teeth 112
Tooth Style HTD8mm
For Belt Width (mm) 85.00
Type A-3
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.177
Unit System Metric
Bushing F
P.D. (mm) 285.00
O.D. (mm) 283.90
MOQ 1
Weight (lb) 29.60
Part Number Cross Reference P112-8M-85-F SPROCKET, 20182196, P112-8M-85-F, QD112-8M-85-F, QD112-8M-85-F
