QD140-14M-40, Timing Pulley

QD140-14M-40

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

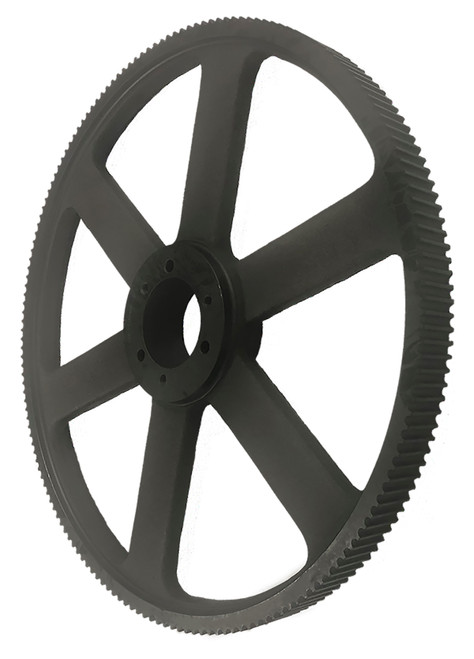

QD140-14M-40, Timing Pulley, Cast Iron, Black Oxide

B&B Manufacturing carries QD140-14M-40 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	QD140-14M-40
Teeth	140
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	24.562
Outside Diameter (in)	24.452
Face Width (in)	2.125
Overall Length (in)	2.125
Unit System	Metric
Bushing	E
P.D. (mm)	624.00
O.D. (mm)	621.10
MOQ	1
Weight (lb)	80.00
Part Number Cross Reference	QD140-14M-40, QD140-14M-40

Comparable to: QD140-14M-40, QD140-14M-40
