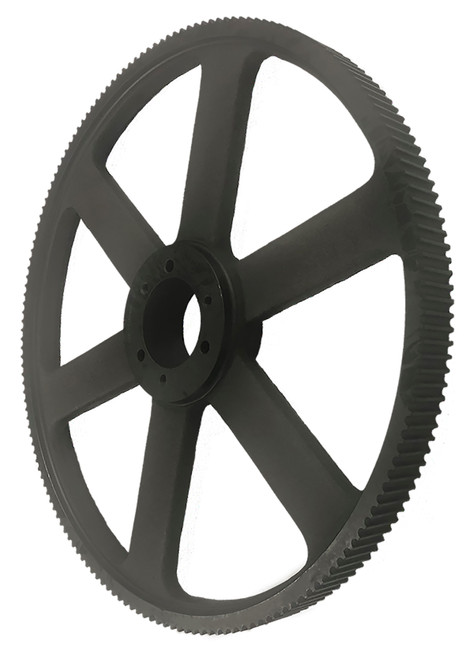

QD192-14M-40, Timing Pulley

QD192-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

QD192-14M-40

QD192-14M-40 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD192-14M-40, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD192-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD192-14M-40
Teeth 192
Tooth Style HTD14mm
For Belt Width (mm) 40.00
Type D-3
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 33.686
Outside Diameter (in) 33.576
Face Width (in) 2.125
Overall Length (in) 2.125
Unit System Metric
Bushing F
P.D. (mm) 856.00
O.D. (mm) 852.80
MOQ 1
Weight (lb) 141.00
Part Number Cross Reference P192-14M-40-F HTD SPKT, P19214M40, P192-14M-40-F, P192-14M-40-F, QD192-14M-40, 110774, QD192-14M-40

Comparable to: P192-14M-40-F HTD SPKT, P19214M40, P192-14M-40-F, P192-14M-40-F, QD192-14M-40, 110774, QD192-14M-40

Documentation

General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
