QD192-14M-85-F, Timing Pulley

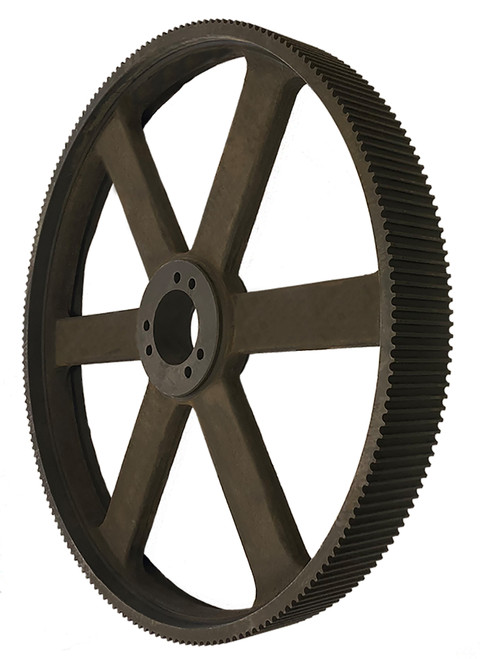

QD192-14M-85-F - Cast Iron Powerhouse®HTD® Pulleys

QD192-14M-85-F

QD192-14M-85-F - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD192-14M-85-F, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD192-14M-85-F Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD192-14M-85-F
Teeth 192
Tooth Style HTD14mm
For Belt Width (mm) 85.00
Type D-3
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 33.686
Outside Diameter (in) 33.576
Overall Length (in) 4.000
Unit System Metric
Bushing F
P.D. (mm) 856.00
O.D. (mm) 852.80
MOQ 1
Weight (lb) 198.00
Part Number Cross Reference 14M192QD85.F, P192-14M-85-F, QD192-14M-85-F, QD192-14M-85-F
