QD26XH200, Timing Pulley

QD26XH200 - Cast Iron Imperial Pitch Pulleys

QD26XH200

Click to Enlarge

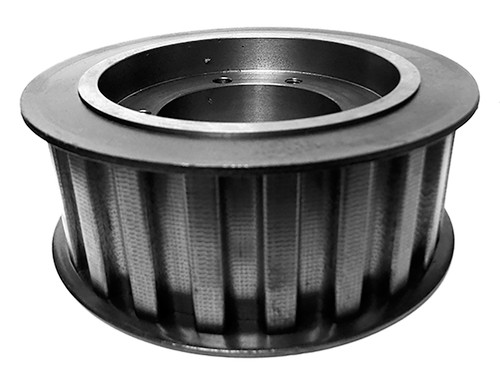

QD26XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD26XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD26XH200
Teeth 26
Tooth Style XH
For Belt Width (in) 2.0000
Type D1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 7.242
Outside Diameter (in) 7.132
Flange Diameter (in) 7.750
Face Width (in) 2.563
Overall Length (in) 2.781
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
P.D. (mm) 184.00
O.D. (mm) 181.10
MOQ 1
Weight (lb) 14.67
Part Number Cross Reference 26H200SD, 26XH200SF, 26XH200-SF, 20182004, 26XH200, 26XH200QD, 26XH200-SF, P26XH200 SF, Q26XH200, QD26XH200
