QD27XH200, Timing Pulley

QD27XH200 - Cast Iron Imperial Pitch Pulleys

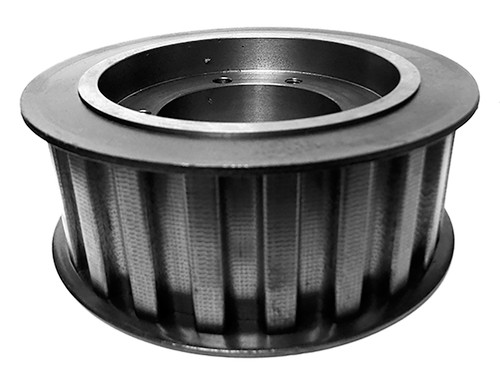

QD27XH200

QD27XH200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD27XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD27XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD27XH200
Teeth 27
Tooth Style XH
For Belt Width (in) 2.0000
Type D1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 7.520
Outside Diameter (in) 7.410
Flange Diameter (in) 7.938
Face Width (in) 2.563
Overall Length (in) 2.781
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.430
Unit System Inch
Bushing SF
P.D. (mm) 191.00
O.D. (mm) 188.20
MOQ 1
Weight (lb) 17.20
Part Number Cross Reference 27XH200SF, 27XH200SF, 27XH200, 27XH200QD, P27XH200 SF, 27XH200SF, QD27XH200, QD27XH200
