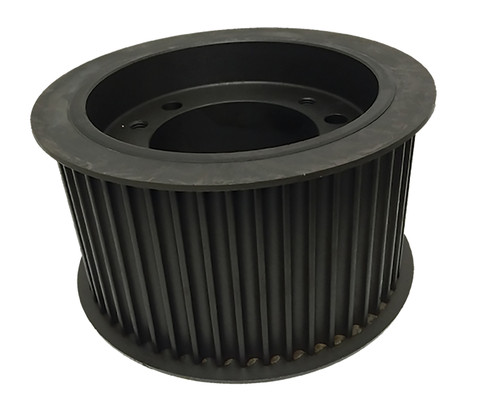

QD30-14M-115, Timing Pulley

QD30-14M-115 - Cast Iron Powerhouse®HTD® Pulleys

QD30-14M-115

QD30-14M-115 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD30-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30-14M-115
Teeth 30
Tooth Style HTD 14mm
For Belt Width (mm) 115.00
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 6.130
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 134.00
O.D. (mm) 130.90
MOQ 1
Weight (lb) 12.00
Part Number Cross Reference P30-14M-115-EL, 20182264, 110857, P3014M115, P30-14M-115-SK, P30-14M-115-EL, P30-14M-115, P30-14M-115-SK, QD30-14M-115
