QD30-14M-55, Timing Pulley

QD30-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD30-14M-55

Comparable to: 14M30QD55.SK, P30-14M-55-SK, 20182267, 110807, P3014M55, P30-14M-55

Click to Enlarge

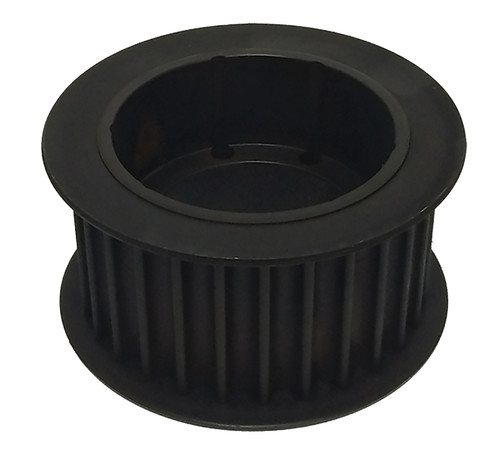

QD30-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30-14M-55
Teeth 30
Tooth Style HTD 14mm
For Belt Width (mm) 55
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 6.130
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
MOQ 1
Weight (lb) 8.50
Part Number Cross Reference 14M30QD55.SK, P30-14M-55-SK, 20182267, 110807, P3014M55, P30-14M-55
