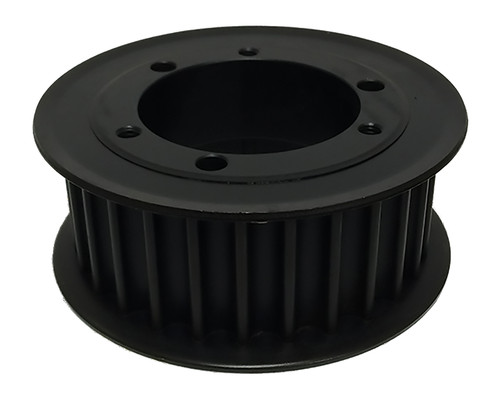

QD32-14M-40, Timing Pulley

QD32-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

QD32-14M-40

QD32-14M-40 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD32-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32-14M-40
Teeth 32
Tooth Style HTD 14mm
For Belt Width (mm) 40.00
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.504
Flange Diameter (in) 6.130
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 143.00
O.D. (mm) 139.80
MOQ 1
Weight (lb) 8.00
Part Number Cross Reference 14M32QD85.SK, P32-14M-40-SK, 20182275, 110783, P32-14M-40-SK, P32-14M-40-SK, P32-14M-40, P32-14M-40-SK, QD32-14M-40
