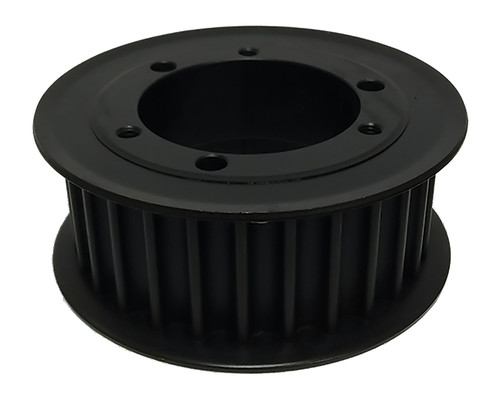

QD33-14M-40, Timing Pulley

QD33-14M-40

QD33-14M-40

QD33-14M-40

Line Drawing

Click to Enlarge

QD33-14M-40, Timing Pulley, Cast Iron, Black Oxide,

B&B Manufacturing carries QD33-14M-40 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	QD33-14M-40
Teeth	33
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.790
Outside Diameter (in)	5.680
Flange Diameter (in)	6.465
Face Width (in)	2.125
Overall Length (in)	2.125
Unit System	Metric
Bushing	SK
P.D. (mm)	147.00
O.D. (mm)	144.30
MOQ	1
Weight (lb)	7.69
Part Number Cross Reference	QD33-14M-40, QD33-14M-40

Comparable to: QD33-14M-40, QD33-14M-40
