QD36L050, Timing Pulley

QD36L050 - Cast Iron Imperial Pitch Pulleys

QD36L050

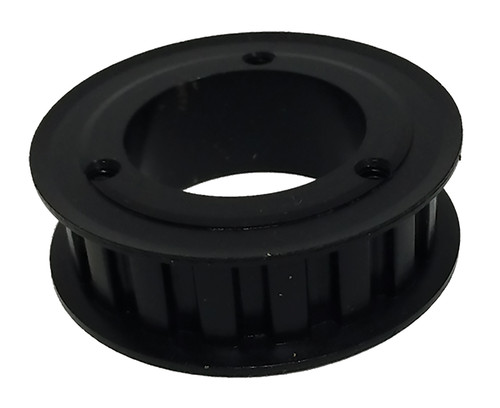

Click to Enlarge

QD36L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD36L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD36L050
Teeth 36
Tooth Style L
For Belt Width (in) 0.5000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SDS
P.D. (mm) 109.00
O.D. (mm) 108.40
MOQ 1
Weight (lb) 1.99
Part Number Cross Reference 36L050SDS, 36L050.SDS, 36L050SDS, 36L050-SDS, 20182065, 36L050, 36L050QD, 36L050-SDS, P36L050 SDS, Q36L050, QD36L050
