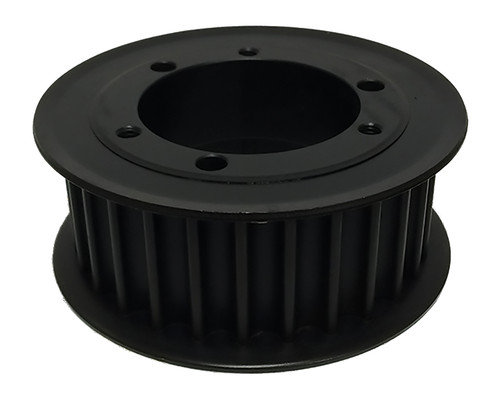

QD37-14M-40, Timing Pulley

QD37-14M-40

QD37-14M-40

QD37-14M-40

Line Drawing

Click to Enlarge

QD37-14M-40, Timing Pulley, Cast Iron, Black Oxide,

B&B Manufacturing carries QD37-14M-40 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	QD37-14M-40
Teeth	37
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	6.492
Outside Diameter (in)	6.382
Flange Diameter (in)	7.160
Face Width (in)	2.125
Overall Length (in)	2.125
Unit System	Metric
Bushing	SF
P.D. (mm)	165.00
O.D. (mm)	162.10
MOQ	1
Weight (lb)	10.17
Part Number Cross Reference	QD37-14M-40, QD37-14M-40

Comparable to: QD37-14M-40, QD37-14M-40
