QD40-14M-40, Timing Pulley

QD40-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD40-14M-40

Comparable to: 14M40QD85.SF, P40-14M-40-SF, 20182333, 110787, P4014M40, P40-14M-40

Click to Enlarge

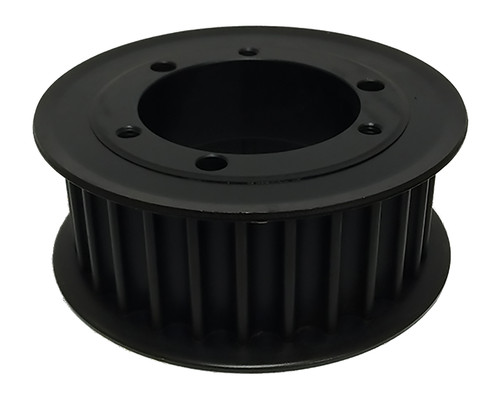

QD40-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD40-14M-40
Teeth 40
Tooth Style HTD 14mm
For Belt Width (mm) 40
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.909
Flange Diameter (in) 7.500
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
MOQ 1
Weight (lb) 13.00
Part Number Cross Reference 14M40QD85.SF, P40-14M-40-SF, 20182333, 110787, P4014M40, P40-14M-40
