QD48-14M-55, Timing Pulley

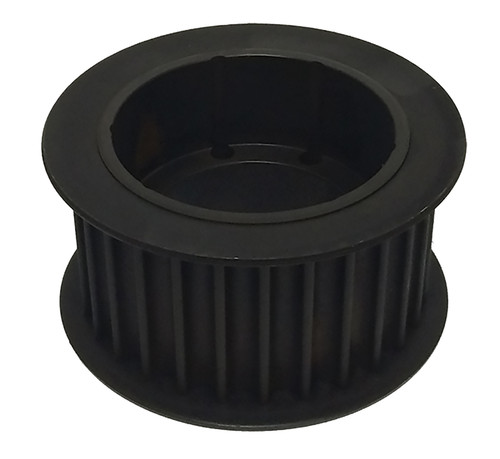

QD48-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

QD48-14M-55

QD48-14M-55 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD48-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD48-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD48-14M-55
Teeth 48
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.940
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Unit System Metric
Bushing E
P.D. (mm) 214.00
O.D. (mm) 211.10
MOQ 1
Weight (lb) 23.00
Part Number Cross Reference 14M48QD55.E, P48-14M-55-E, 20182366, P48-14M-55-E HTD SPKT, P4814M55, P48-14M-55-E, P48-14M-55-E, P48-14M-55, P48-14M-55-E, QD48-14M-55, 110814, QD48-14M-55

Comparable to: 14M48QD55.E, P48-14M-55-E, 20182366, P48-14M-55-E HTD SPKT, P4814M55, P48-14M-55-E, P48-14M-55-E, P48-14M-55, P48-14M-55-E, QD48-14M-55, 110814, QD48-14M-55
