QD48-5M-15, Timing Pulley

QD48-5M-15

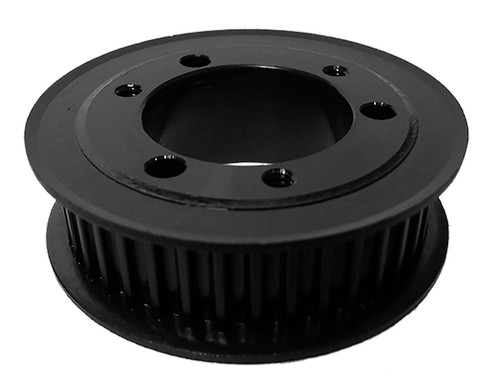

Click to Enlarge

QD48-5M-15, Timing Pulley, Steel, Black Oxide,

Learn more about QD48-5M-15 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD48-5M-15
Teeth	48
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	C1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.963
Flange Diameter (in)	3.330
Face Width (in)	0.840
Overall Length (in)	0.840
Hub Diameter (in)	0.685
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.650
Unit System	Metric
Bushing	JA
P.D. (mm)	76.00
O.D. (mm)	75.30
MOQ	1
Weight (lb)	0.99
Part Number Cross Reference	P48-5M-15-JA, P485M15-JA, 5M48QD15.JA, P48-5M-15-JA, 20182371, P48-5M-15-JA HTD SPKT, P485M15, P48-5M-15-JA, P48-5M-15, P485M15JA, QD48-5M-15, 114644, QD48-5M-15
