QD56-8M-85, Timing Pulley

QD56-8M-85 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD56-8M-85

Comparable to: 8M56QD85.SK, P56-8M-85-EL, 20182405, 110766, P568M85, P56-8M-85-SK, P56-8M-85

Click to Enlarge

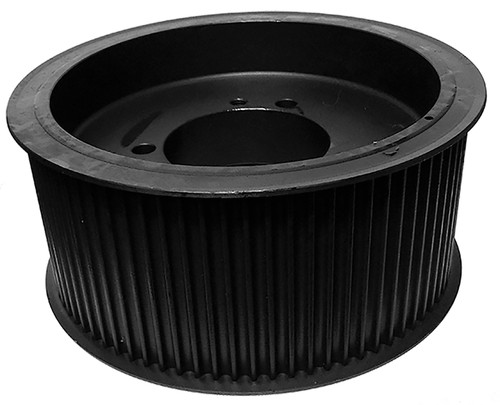

QD56-8M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD56-8M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD56-8M-85
Teeth 56
Tooth Style HTD 8mm
For Belt Width (mm) 85
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.560
Flange Diameter (in) 5.945
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing SK
MOQ 1
Weight (lb) 11.60
Part Number Cross Reference 8M56QD85.SK, P56-8M-85-EL, 20182405, 110766, P568M85, P56-8M-85-SK, P56-8M-85
