QD64-14M-170, Timing Pulley

QD64-14M-170 - Cast Iron Powerhouse®HTD® Pulleys

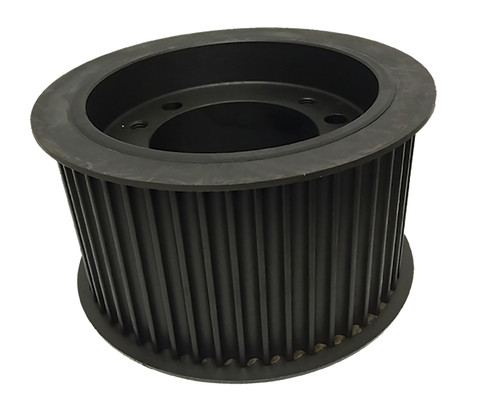

QD64-14M-170

Click to Enlarge

QD64-14M-170, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD64-14M-170 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD64-14M-170
Teeth 64
Tooth Style HTD14mm
For Belt Width (mm) 170.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for J Bushing
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.119
Flange Diameter (in) 11.750
Face Width (in) 7.375
Overall Length (in) 7.375
Min. Bore (in) 1.5
Unit System Metric
Bushing J
P.D. (mm) 285.00
O.D. (mm) 282.40
MOQ 1
Weight (lb) 91.00
Part Number Cross Reference 14M64QD170.J, P64-14M-170-J, 20182420, P64-14M-170-J HTD SPKT, P6414M170, P64-14M-170-J, P64-14M-170-J, P64-14M-170, P64-14M-170-J, QD64-14M-170, 110888, QD64-14M-170

Comparable to: 14M64QD170.J, P64-14M-170-J, 20182420, P64-14M-170-J HTD SPKT, P6414M170, P64-14M-170-J, P64-14M-170-J, P64-14M-170, P64-14M-170-J, QD64-14M-170, 110888, QD64-14M-170
