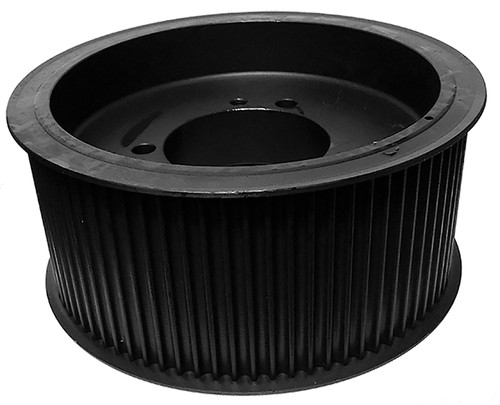

QD64-8M-85-SK, Timing Pulley

QD64-8M-85-SK

QD64-8M-85-SK

QD64-8M-85-SK

Line Drawing

Click to Enlarge

QD64-8M-85-SK, Timing Pulley, Cast Iron, Black Oxide,

B&B Manufacturing carries QD64-8M-85-SK to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	QD64-8M-85-SK
Teeth	64
Tooth Style	HTD8mm
For Belt Width (mm)	85.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	6.416
Outside Diameter (in)	6.364
Flange Diameter (in)	6.772
Unit System	Metric
Bushing	SK
P.D. (mm)	163.00
O.D. (mm)	161.70
MOQ	1
Weight (lb)	14.60
Part Number Cross Reference	8M64QD85.SK, P64-8M-85-SK, 20182435, P64-8M-85, QD64-8M-85-SK, QD64-8M-85-SK

Comparable to: 8M64QD85.SK, P64-8M-85-SK, 20182435, P64-8M-85, QD64-8M-85-SK, QD64-8M-85-SK
