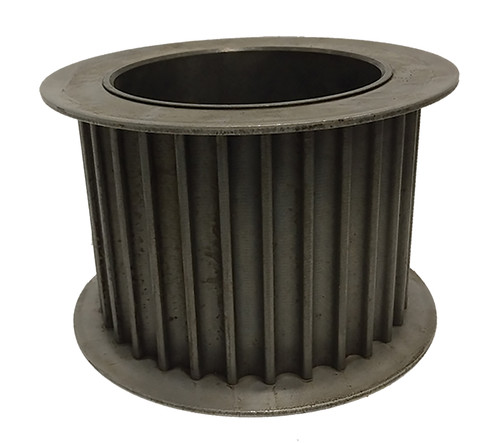

QD68-14M-85, Timing Pulley

QD68-14M-85

Click to Enlarge

QD68-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD68-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD68-14M-85
Teeth	68
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	D2F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	11.930
Outside Diameter (in)	11.820
Flange Diameter (in)	12.500
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	303.00
O.D. (mm)	300.20
MOQ	1
Weight (lb)	51.00
Part Number Cross Reference	14M68QD85.F, P68-14M-85-F, 20182440, P68-14M-85-F HTD SPKT, P6814M85, P68-14M-85-F, P68-14M-85-F, P68-14M-85, P68-14M-85-F, QD68-14M-85, 110852, QD68-14M-85
