QD72-14M-115, Timing Pulley

QD72-14M-115

Click to Enlarge

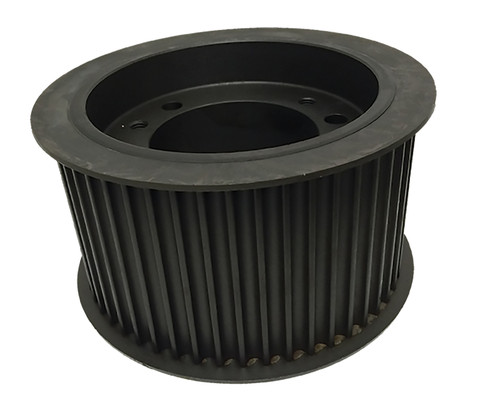

QD72-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD72-14M-115
Teeth	72
Tooth Style	HTD14mm
For Belt Width (mm)	115.00
Type	D1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	12.632
Outside Diameter (in)	12.522
Flange Diameter (in)	13.190
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	1.5
Unit System	Metric
Bushing	J
P.D. (mm)	321.00
O.D. (mm)	318.10
MOQ	1
Weight (lb)	99.00
Part Number Cross Reference	14M72QD115.J, P72-14M-115-J, 20182448, P72-14M-115-J HTD SPKT, P7214M115, P72-14M-115-J, P72-14M-115-J, P72-14M-115, P72-14M-115-J, QD72-14M-115, 110870, QD72-14M-115
