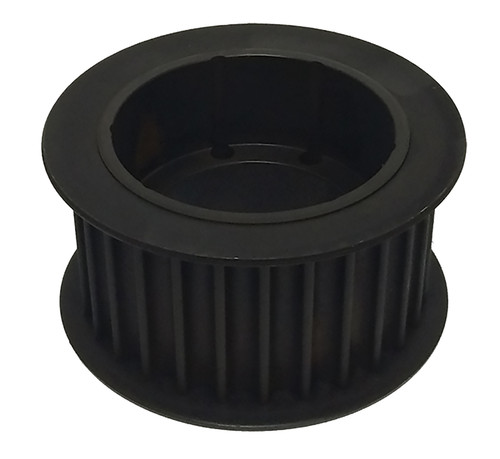

QD72-14M-55, Timing Pulley

QD72-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

QD72-14M-55

QD72-14M-55 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD72-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-14M-55
Teeth 72
Tooth Style HTD 14mm
For Belt Width (mm) 55.00
Type C2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 12.632
Outside Diameter (in) 12.522
Flange Diameter (in) 13.190
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 1
Unit System Inch
Bushing F
P.D. (mm) 321.00
O.D. (mm) 318.10
MOQ 1
Weight (lb) 49.00
Part Number Cross Reference 14M70QD55.F, P72-14M-55-F, 20182451, 110820, P7214M55, P72-14M-55-F, P72-14M-55-F, P72-14M-55, P72-14M-55-F, QD72-14M-55
