QD72-8M-85-SF, Timing Pulley

QD72-8M-85-SF

Click to Enlarge

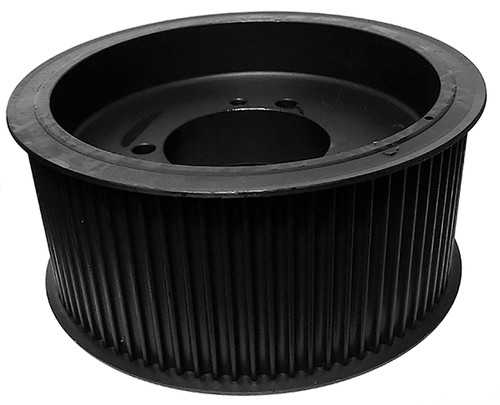

QD72-8M-85-SF, Timing Pulley, Cast Iron, Black Oxide,

B&B Manufacturing carries QD72-8M-85-SF to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	QD72-8M-85-SF
Teeth	72
Tooth Style	HTD8mm
For Belt Width (mm)	85.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	7.218
Outside Diameter (in)	7.166
Flange Diameter (in)	7.598
Unit System	Metric
Bushing	SF
P.D. (mm)	183.00
O.D. (mm)	182.00
MOQ	1
Weight (lb)	18.50
Part Number Cross Reference	8M72QD85.SF, P72-8M-85-SF NO FLANGES QTE, 20920925, P72-8M-85, QD72-8M-85-SF, QD72-8M-85-SF
