QD80-5M-25, Timing Pulley

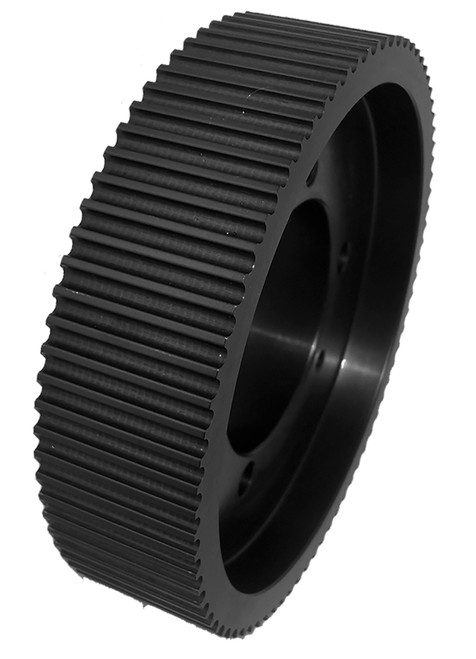

QD80-5M-25 - Cast Iron Powerhouse®HTD® Pulleys

QD80-5M-25

QD80-5M-25 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD80-5M-25, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD80-5M-25 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD80-5M-25
Teeth 80
Tooth Style HTD5mm
For Belt Width (mm) 25.00
Type C-1
Material Ductile Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for SDS Bushing
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.968
Face Width (in) 1.230
Overall Length (in) 1.230
Min. Bore (in) 0.5
Unit System Metric
Bushing SDS
P.D. (mm) 127.00
O.D. (mm) 126.20
MOQ 1
Weight (lb) 3.51
Part Number Cross Reference P80-5M-25 SDS, P805M25-SDS, 5M80QD25.SDS, P80-5M-25-SDS, 20182476, 114665, P805M25, P80-5M-25-SDS, P80-5M-25, P805M25SDS, QD80-5M-25, 114665, QD80-5M-25

Comparable to: P80-5M-25 SDS, P805M25-SDS, 5M80QD25.SDS, P80-5M-25-SDS, 20182476, 114665, P805M25, P80-5M-25-SDS, P80-5M-25, P805M25SDS, QD80-5M-25, 114665, QD80-5M-25
