QD80-8M-85-E, Timing Pulley

QD80-8M-85-E

QD80-8M-85-E

QD80-8M-85-E

Line Drawing

Click to Enlarge

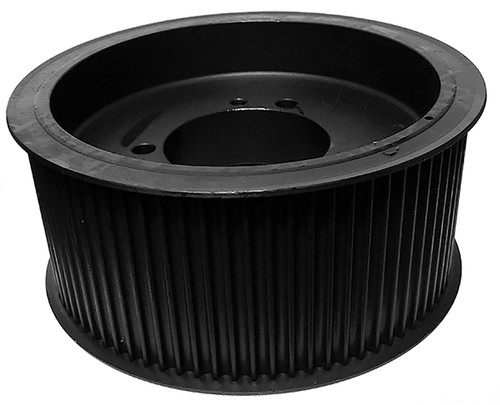

QD80-8M-85-E, Timing Pulley, Cast Iron, Black Oxide,

B&B Manufacturing carries QD80-8M-85-E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	QD80-8M-85-E
Teeth	80
Tooth Style	HTD8mm
For Belt Width (mm)	85.00
Type	A2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	8.020
Outside Diameter (in)	7.968
Flange Diameter (in)	8.386
Unit System	Metric
Bushing	E
P.D. (mm)	204.00
O.D. (mm)	202.40
MOQ	1
Weight (lb)	21.40
Part Number Cross Reference	8M80QD85.E, P80-8M-85-E, 20182480, P808M85, P80-8M-85-E, P80-8M-85-E, QD80-8M-85-E, QD80-8M-85-E

Comparable to: 8M80QD85.E, P80-8M-85-E, 20182480, P808M85, P80-8M-85-E, P80-8M-85-E, QD80-8M-85-E, QD80-8M-85-E

Documentation

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide
