QD90-5M-25, Timing Pulley

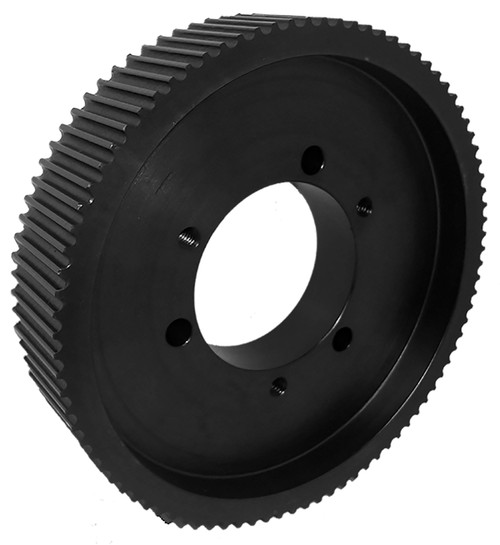

QD90-5M-25 - Cast Iron Powerhouse®HTD® Pulleys

QD90-5M-25

QD90-5M-25 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

QD90-5M-25, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD90-5M-25 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD90-5M-25
Teeth 90
Tooth Style HTD5mm
For Belt Width (mm) 25.00
Type C-1
Material Ductile Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for SDS Bushing
Pitch Diameter (in) 5.639
Outside Diameter (in) 5.594
Face Width (in) 1.230
Overall Length (in) 1.230
Min. Bore (in) 0.5
Unit System Metric
Bushing SDS
P.D. (mm) 143.00
O.D. (mm) 142.10
MOQ 1
Weight (lb) 4.56
Part Number Cross Reference P90-5M-25 SDS, P905M25-SDS, 5M90QD25.SDS, P90-5M-25-SDS, 20182493, P90-5M-25-SDS HTD SPKT, P905M25, P90-5M-25-SDS, P90-5M-25, P905M25SDS, QD90-5M-25, 114666, QD90-5M-25

Comparable to: P90-5M-25 SDS, P905M25-SDS, 5M90QD25.SDS, P90-5M-25-SDS, 20182493, P90-5M-25-SDS HTD SPKT, P905M25, P90-5M-25-SDS, P90-5M-25, P905M25SDS, QD90-5M-25, 114666, QD90-5M-25
