SKx1, QD Bushing

SKx1, SK.1, SK X 1, SK-1, 20181753, SK1

SKx1

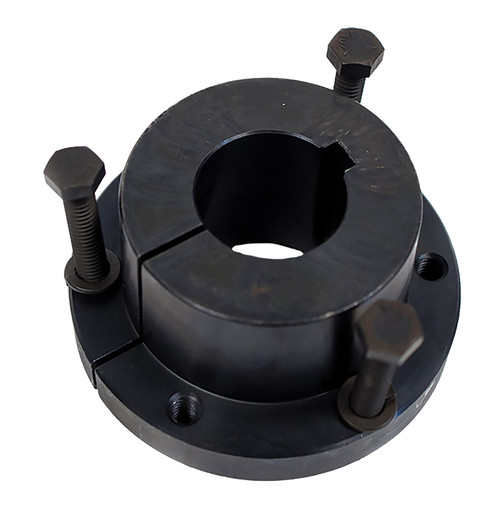

SKx1, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries SKx1 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number SKx1
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
A (in) 0.500
B (in) 2.813
D (in) 3.875
E (in) 1.375
F (in) 1.25
L (in) 1.875
Torque Capacity (lb/in) 7,000
Bolt Circle (in) 3.313
Number & Screw Size 3 - (5/16-18 x 2)
MOQ 1
Weight (lb) 2.00
Part Number Cross Reference SK 1., SK X 1, SK.1, SK X 1, SK-1, 20181753, SK X 1-KW BUSHING, SK1, SK X 1, SK-1, SK X 1, SK X 1, SK-1, 82225285, SKX1, SK-1, SKx1, 120421, SKx1
Cap Screw Quantity 3

Related Products

Comparable to: SK 1., SK X 1, SK.1, SK X 1, SK-1, 20181753, SK X 1-KW BUSHING, SK1, SK X 1, SK-1, SK X 1, SK X 1, SK-1, 82225285, SKX1, SK-1, SKx1, 120421, SKx1
