TL14H150-1108 Imperial Pitch Pulleys

TL14H150-1108, TL14H150, 113691, P14H150-11

Product Details for TL14H150-1108

Comparable to: TL14H150-1108, TL14H150, 113691, P14H150-11

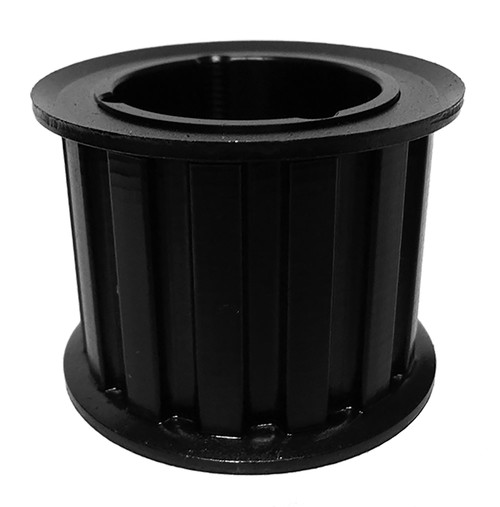

TL14H150-1108, Timing Pulley, Powerhouse Timing, 1108 Bushing, Steel

Specifications

Product Number TL14H150-1108
Teeth 14
Tooth Style H
For Belt Width (in) 1.500
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.228
Outside Diameter (in) 2.174
Flange Diameter (in) 2.461
Face Width (in) 1.812
Overall Length (in) 1.812
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 1108
Weight (lb) 1.00
Part Number Cross Reference TL14H150-1108, TL14H150, 113691, P14H150-11

Documentation

Download Catalog 2015_BBMAN_CATALOG_56.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL14H150-1108_REACH_cert
RoHS Certification TL14H150-1108_RoHS_cert
