TL16H100-1108, Timing Pulley

TL16H100-1108 - Steel Imperial Pitch Pulleys

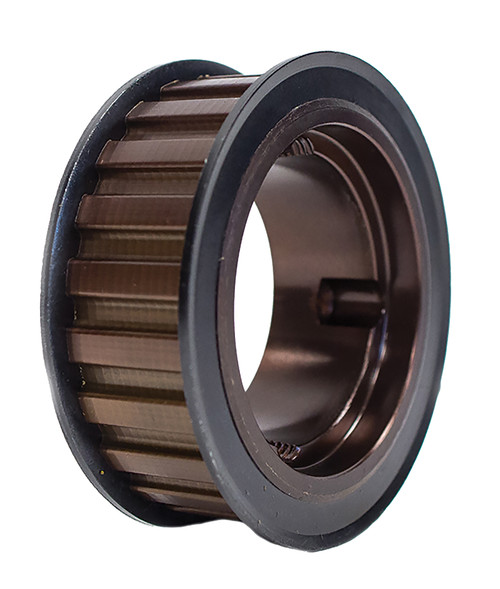

TL16H100-1108

Click to Enlarge

TL16H100-1108, Timing Pulley, Steel, Black Oxide,

Learn more about TL16H100-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL16H100-1108
Teeth 16
Tooth Style H
For Belt Width (in) 1.0000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.492
Flange Diameter (in) 2.780
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1108
P.D. (mm) 65.00
O.D. (mm) 63.30
MOQ 1
Weight (lb) 1.14
Part Number Cross Reference TL16H100, 113684, TB 16-H-100, P16H100-1108, TL16H100-1108
