TL18H150, Timing Pulley

TL18H150 - Steel Imperial Pitch Pulleys

TL18H150

Click to Enlarge

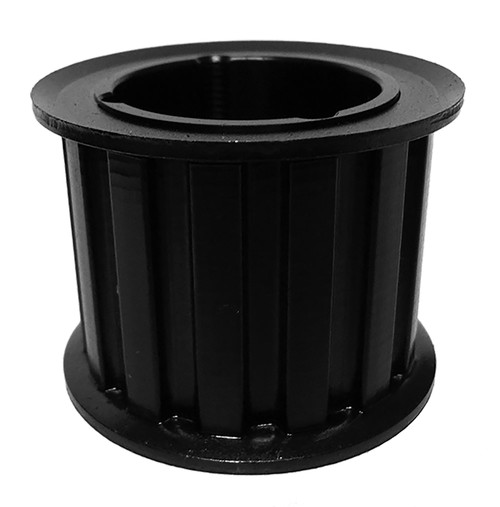

TL18H150, Timing Pulley, Steel, Black Oxide,

Learn more about TL18H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL18H150
Teeth 18
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1215
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.811
Flange Diameter (in) 3.100
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 1215
P.D. (mm) 73.00
O.D. (mm) 71.40
MOQ 1
Weight (lb) 1.55
Part Number Cross Reference TL18H150, TB18H150, 18 H 150 TL, TL18H150 1215, 20182505, 113693, TL18H150 1215, TL18H150, TB 18-H-150, P18H150-1210, TL18H150

Comparable to: TL18H150, TB18H150, 18 H 150 TL, TL18H150 1215, 20182505, 113693, TL18H150 1215, TL18H150, TB 18-H-150, P18H150-1210, TL18H150
