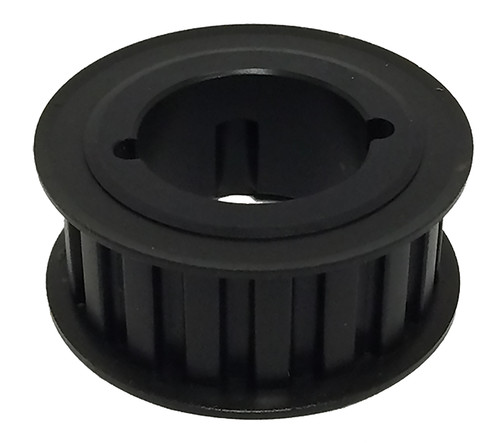

TL20L075-1108 Imperial Pitch Pulleys

TL20L075-1108, TL20L075, 78817005, 113594, P20L075-11

Product Details for TL20L075-1108

Comparable to: TL20L075-1108, TL20L075, 78817005, 113594, P20L075-11

TL20L075-1108, Timing Pulley, Powerhouse Timing, 1108 Bushing, Steel

Specifications

Product Number TL20L075-1108
Teeth 20
Tooth Style L
For Belt Width (in) 0.750
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 1.000
Overall Length (in) 1.000
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1108
Weight (lb) 0.68
Part Number Cross Reference TL20L075-1108, TL20L075, 78817005, 113594, P20L075-11
