TL22H150, Timing Pulley

TL22H150 - Cast Iron Imperial Pitch Pulleys

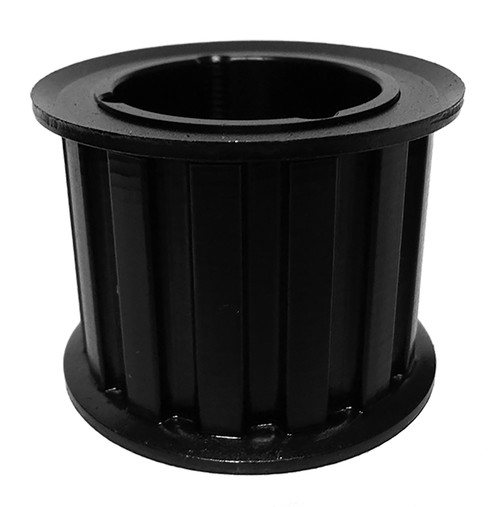

TL22H150

Click to Enlarge

TL22H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL22H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL22H150
Teeth 22
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1615
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.735
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 1615
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 2.41
Part Number Cross Reference TL22H150, TB22H150, 22 H 150 TL, TL22H150 1615, 20182519, 113695, TL22H150 1615, TL22H150, TB 22-H-150, P22H150-1610, TL22H150

Related Products

Comparable to: TL22H150, TB22H150, 22 H 150 TL, TL22H150 1615, 20182519, 113695, TL22H150 1615, TL22H150, TB 22-H-150, P22H150-1610, TL22H150
