TL22H200, Timing Pulley

TL22H200 - Cast Iron Imperial Pitch Pulleys

TL22H200

Click to Enlarge

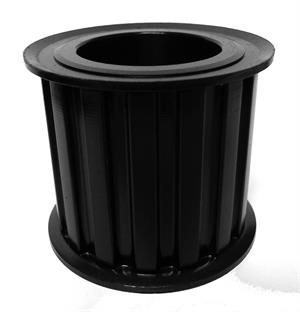

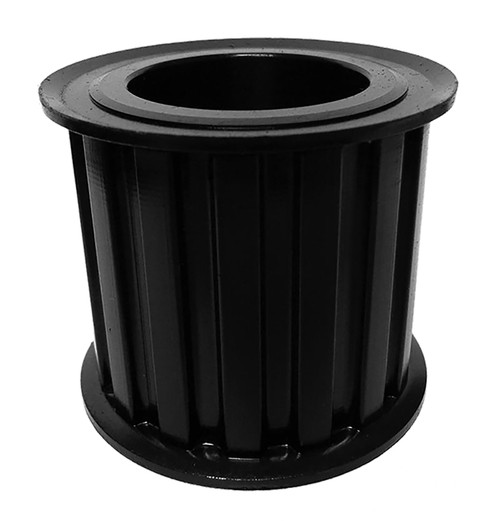

TL22H200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL22H200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL22H200
Teeth 22
Tooth Style H
For Belt Width (in) 2.0000
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1615
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.735
Face Width (in) 2.344
Overall Length (in) 2.344
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.094
Unit System Inch
Bushing 1615
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 3.13
Part Number Cross Reference TL22H200, TB22H200, 22 H 200 TL, TL22H200 1615, 20182520, 113710, TL22H200 1615, TL22H200, TB 22-H-200, P22H200-1615, TL22H200
