TL22H300 Imperial Pitch Pulleys

TL22H300, 78817040, TL22H300 1615, 20182521, 113758, P22H300-1615

Product Details for TL22H300

Comparable to: TL22H300, 78817040, TL22H300 1615, 20182521, 113758, P22H300-1615

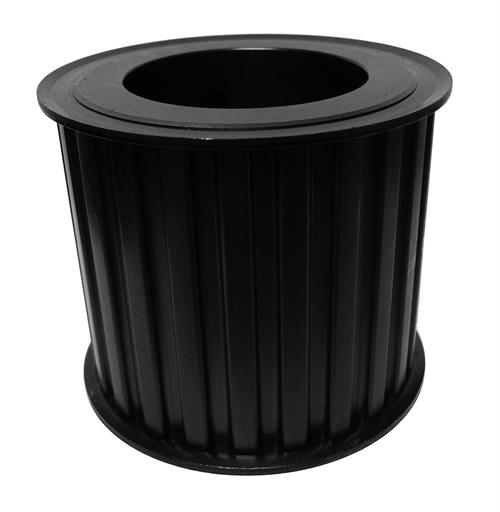

TL22H300, Timing Pulley, Powerhouse Timing, 1615 Bushing, Cast Iron

Specifications

Product Number TL22H300
Teeth 22
Tooth Style H
For Belt Width (in) 3.000
Type 3F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1615
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.735
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.125
Unit System Inch
Bushing 1615
Weight (lb) 4.00
List Price (1-9 Qty.) (USD) 88.5
Discount Price (10-24 Qty.) (USD) 81.86
Discount Price (25-49 Qty.) (USD) 73.68
Part Number Cross Reference TL22H300, 78817040, TL22H300 1615, 20182521, 113758, P22H300-1615
