TL22L075-1108, Timing Pulley

TL22L075-1108 - Steel Imperial Pitch Pulleys

TL22L075-1108

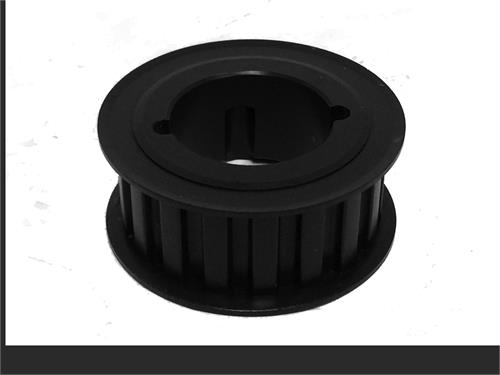

Click to Enlarge

TL22L075-1108, Timing Pulley, Steel, Black Oxide,

Learn more about TL22L075-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL22L075-1108
Teeth 22
Tooth Style L
For Belt Width (in) 0.7500
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.626
Outside Diameter (in) 2.596
Flange Diameter (in) 2.875
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1108
P.D. (mm) 67.00
O.D. (mm) 65.90
MOQ 1
Weight (lb) 0.99
Part Number Cross Reference TL22L075, 22 L 075 TL.1108, 113595, TL22L075, TB 22-L-075, P22L075-1108, TL22L075-1108
