TL30H300 Imperial Pitch Pulleys

TL30H300, 78817097, 113767, P30H300-20

Product Details for TL30H300

Comparable to: TL30H300, 78817097, 113767, P30H300-20

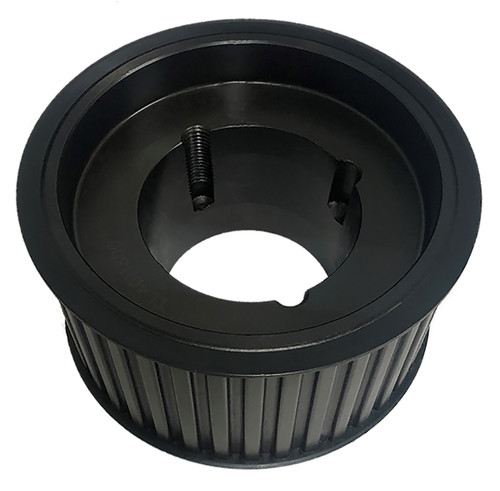

TL30H300, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL30H300
Teeth 30
Tooth Style H
For Belt Width (in) 3.000
Type E1
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.005
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.140
Unit System Inch
Bushing 2012
Weight (lb) 7.00
Part Number Cross Reference TL30H300, 78817097, 113767, P30H300-20

Documentation

Download Catalog 2015_BBMAN_CATALOG_64.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL30H300_REACH_cert
RoHS Certification TL30H300_RoHS_cert
