TL32H200 Imperial Pitch Pulleys

TL32H200, 78817088, 113722, P32H200-25

Product Details for TL32H200

Comparable to: TL32H200, 78817088, 113722, P32H200-25

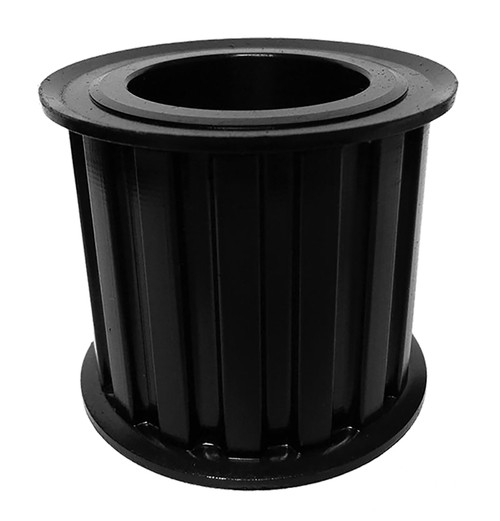

TL32H200, Timing Pulley, Powerhouse Timing, 2517 Bushing, Cast Iron

Specifications

Product Number TL32H200
Teeth 32
Tooth Style H
For Belt Width (in) 2.000
Type 3F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.039
Flange Diameter (in) 5.320
Face Width (in) 1.812
Overall Length (in) 1.812
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 2517
Weight (lb) 5.50
Part Number Cross Reference TL32H200, 78817088, 113722, P32H200-25
