TL32H300 Imperial Pitch Pulleys

TL32H300, 78817098, 113770, P32H300-2517

Product Details for TL32H300

Comparable to: TL32H300, 78817098, 113770, P32H300-2517

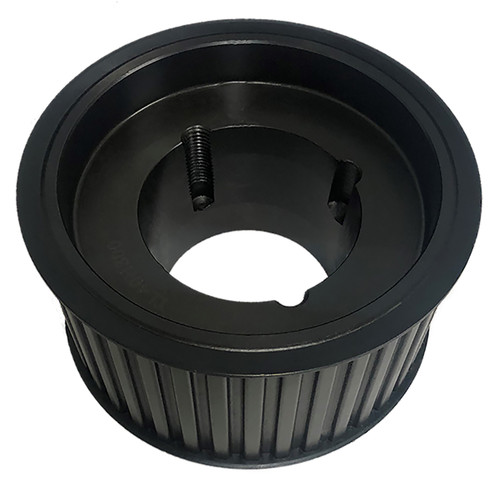

TL32H300, Timing Pulley, Powerhouse Timing, 2517 Bushing, Cast Iron

Specifications

Product Number TL32H300
Teeth 32
Tooth Style H
For Belt Width (in) 3.000
Type E1
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.039
Flange Diameter (in) 5.320
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.140
Unit System Inch
Bushing 2517
Weight (lb) 7.40
List Price (1-9 Qty.) (USD) 132.36
Discount Price (10-24 Qty.) (USD) 122.43
Discount Price (25-49 Qty.) (USD) 110.19
Part Number Cross Reference TL32H300, 78817098, 113770, P32H300-2517

Documentation

Download Catalog 2015_BBMAN_CATALOG_64.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL32H300_REACH_cert
RoHS Certification TL32H300_RoHS_cert
