35B35

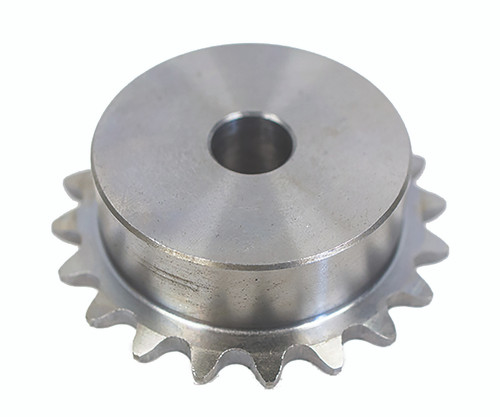

35B35, Roller Chain Sprocket

35B35

35B35, Roller Chain Sprocket, Steel

Learn more about 35B35 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35B35
Teeth	35
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	4.183
Outside Diameter (in)	4.392
Face Width (in)	0.168
Overall Length (in)	0.875
Hub Diameter (in)	2.250
Min. Bore (in)	0.625
Unit System	Inch
MOQ	1
Weight (lb)	1.50
Part Number Cross Reference	35B35, 35B35, 35B35, 35B35, 35B35
Number of Strands	1
Number of Hubs	1
