100MP025-6A4, Timing Pulley

100MP025-6A4 - Aluminum Imperial Pitch Pulleys

Product Details for 100MP025-6A4

Comparable to: A 6A61-00NF03110, A6A61-00NF03110, PB100MXL025, 78260295, PT0100A10L04N, TP7A5H4-100, 100MXL025-2A X 5/16

Click to Enlarge

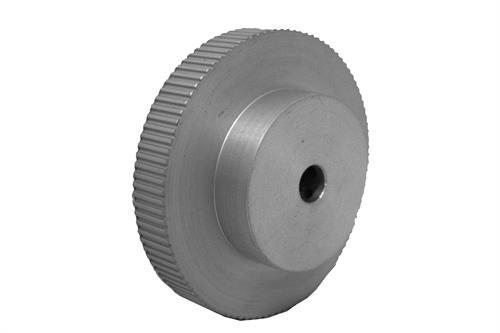

100MP025-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100MP025-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 100MP025-6A4
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.29
Part Number Cross Reference A 6A61-00NF03110, A6A61-00NF03110, PB100MXL025, 78260295, PT0100A10L04N, TP7A5H4-100, 100MXL025-2A X 5/16
Set Screw Quantity 2
