103V1400E, V-Belt Pulley

103V1400E, 3V14010, 10-3V1.4, 10/3V1400E

103V1400E

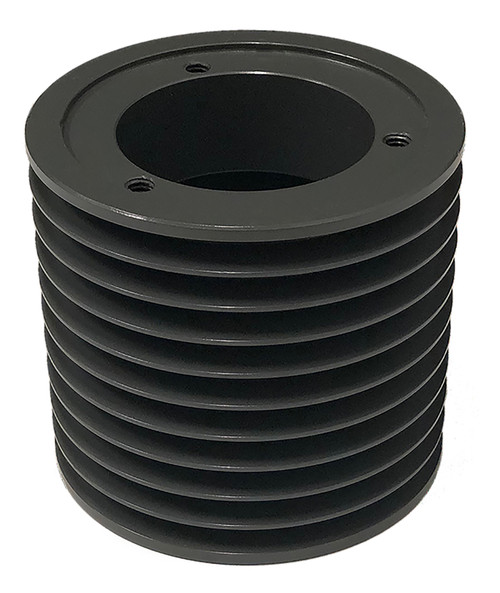

103V1400E, V-Belt Pulley, Cast Iron

Learn more about 103V1400E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V1400E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 13.950
Outside Diameter (in) 14.000
Face Width (in) 4.000
Min. Bore (in) 0.875
Unit System Inch
Bushing E
E (in) 0.09375
L (in) 2.75
M (in) 1.5
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 42.80
Part Number Cross Reference QD10/3V14.00, 103V1400E, 3V14.0-10-E PULLEY, 20180524, 10-3V14.00-E SHEAVE, 3V14010, 10-3V14.00, 103V1400E, 455236, 103V1400E
Grooves 10

Related Products

Comparable to: QD10/3V14.00, 103V1400E, 3V14.0-10-E PULLEY, 20180524, 10-3V14.00-E SHEAVE, 3V14010, 10-3V14.00, 103V1400E, 455236, 103V1400E
