103V1900E, V-Belt Pulley

103V1900E, 3V19010, 10-3V1.9, 10/3V1900E

Product Details for 103V1900E

Comparable to: QD10/3V19.00, 78730190, 10 3V 1900 E, 1-03V1900.E, 103V1900E, 3V19.0-10-E PULLEY, 20180532, 10/3V19.0–E, 3V19010, 103V19.0, 3V19.0-10-E, 3V1900/10E, 10-3V1.9, 10-3V190, 10/3V1900E, 455236

Click to Enlarge

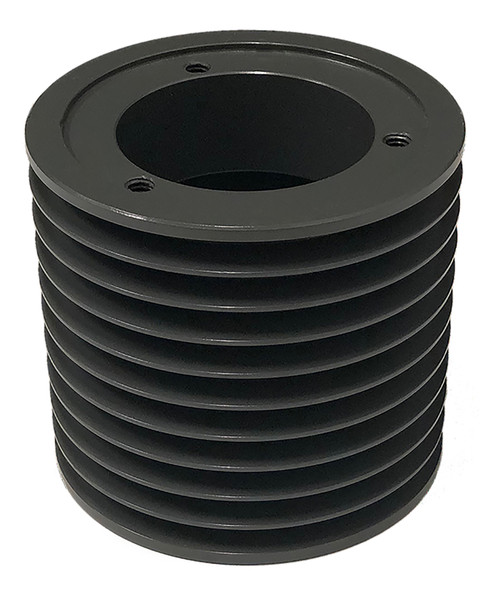

103V1900E, V-Belt Pulley, Cast Iron

Learn more about 103V1900E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V1900E
Type A3
Material Cast Iron
Bore Type QD
Bore (in) E
Pitch Diameter (in) 18.950
Outside Diameter (in) 19.000
Face Width (in) 4.000
Min. Bore (in) 0.875
Unit System Inch
Bushing E
E (in) 3/32
L (in) 2 3/4
M (in) 1 1/2
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 64.00
Part Number Cross Reference QD10/3V19.00, 78730190, 10 3V 1900 E, 1-03V1900.E, 103V1900E, 3V19.0-10-E PULLEY, 20180532, 10/3V19.0–E, 3V19010, 103V19.0, 3V19.0-10-E, 3V1900/10E, 10-3V1.9, 10-3V190, 10/3V1900E, 455236
Grooves 10
