103V2500F, V-Belt Pulley

103V2500F, 3V25010, 10-3V25.0, 10/3V2500F

103V2500F

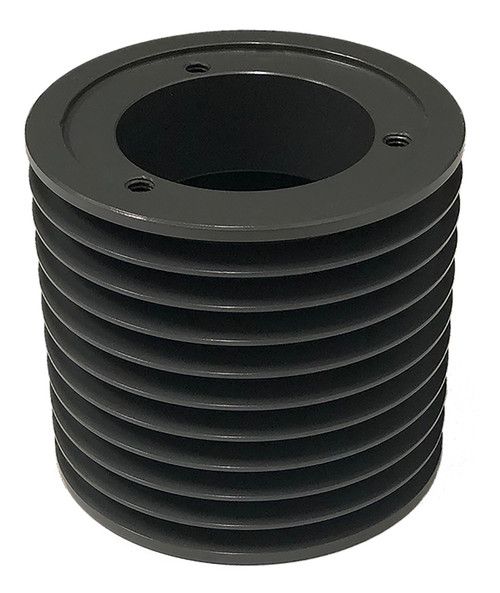

103V2500F, V-Belt Pulley, Cast Iron

Learn more about 103V2500F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V2500F
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 24.950
Outside Diameter (in) 25.000
Face Width (in) 4.000
Min. Bore (in) 1
Unit System Inch
Bushing F
E (in) 0.03125
L (in) 3.75
M (in) 0.625
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 99.00
Part Number Cross Reference QD10/3V25.00, 103V2500F, 3V25.0-10-F PULLEY, 20180555, 10-3V25.00-F SHEAVE, 3V25010, 10-3V25.00, 103V2500F, 455238, 103V2500F
Grooves 10

Related Products

Comparable to: QD10/3V25.00, 103V2500F, 3V25.0-10-F PULLEY, 20180555, 10-3V25.00-F SHEAVE, 3V25010, 10-3V25.00, 103V2500F, 455238, 103V2500F
